ASMD1812-030-33V

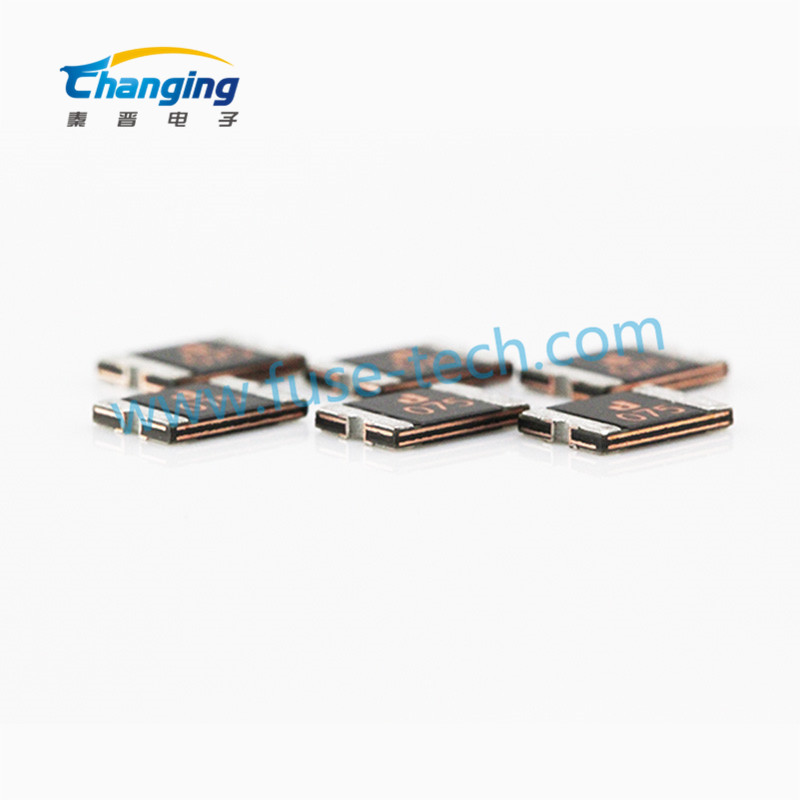

集電通ASMD1812貼片型、無鉛、卷盤式包裝自恢復(fù)保險絲，應(yīng)用于高密度線路板，工作電流：0.1-3.5A 工作電壓：6-60V 工作溫度：-40~85℃
| 型號 | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ASMD1812-400 | 4.00 | 7.00 | 6.00 | 100 | 2.0 | 10.0 | 4.00 | 0.005 | 0.025 |
 |
| ASMD1812-350-16V | 3.50 | 6.00 | 16.0 | 100 | 2.0 | 10.0 | 4.00 | 0.008 | 0.030 |
|
| ASMD1812-350 | 3.50 | 6.00 | 6.0 | 100 | 2.0 | 10.0 | 4.00 | 0.008 | 0.035 |
|
| ASMD1812-300-16V | 3.00 | 5.00 | 16.0 | 100 | 0.8 | 8.0 | 4.00 | 0.010 | 0.040 |
|
| ASMD1812-300 | 3.00 | 5.00 | 8.0 | 100 | 0.8 | 8.0 | 4.00 | 0.010 | 0.040 |
|
| ASMD1812-260-16V | 2.60 | 5.00 | 16.0 | 100 | 0.8 | 8.0 | 2.50 | 0.010 | 0.050 |
|
| ASMD1812-260 | 2.60 | 5.00 | 8.0 | 100 | 0.8 | 8.0 | 2.50 | 0.010 | 0.050 |
|
| ASMD1812-200-24V | 2.00 | 4.00 | 24.0 | 100 | 0.8 | 8.0 | 2.00 | 0.020 | 0.120 |
|
| ASMD1812-200-16V | 2.00 | 4.00 | 16.0 | 100 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 |
|
| ASMD1812-200 | 2.00 | 4.00 | 8.0 | 100 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 |
|
| ASMD1812-160 | 1.60 | 2.80 | 8.0 | 100 | 0.8 | 8.0 | 1.00 | 0.030 | 0.130 |
|
| ASMD1812-150/16 | 1.50 | 3.00 | 16.0 | 100 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 |
|
| ASMD1812-150 | 1.50 | 3.00 | 8.0 | 100 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 |
|
| ASMD1812-125-8V | 1.25 | 2.50 | 8.00 | 100 | 0.8 | 8.0 | 0.40 | 0.050 | 0.140 |
|
| ASMD1812-125 | 1.25 | 2.50 | 16.0 | 100 | 0.8 | 8.0 | 0.40 | 0.050 | 0.160 |
|
| ASMD1812-110/16 | 1.10 | 2.20 | 16.0 | 100 | 0.8 | 8.0 | 0.30 | 0.050 | 0.250 |
|
| ASMD1812-110 | 1.10 | 2.20 | 8.0 | 100 | 0.8 | 8.0 | 0.30 | 0.050 | 0.250 |
|
| ASMD1812-075/24 | 0.75 | 1.50 | 24.0 | 100 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 |
|
| ASMD1812-075 | 0.75 | 1.50 | 13.2 | 100 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 |
|
| ASMD1812-050/60 | 0.50 | 1.00 | 60.0 | 100 | 0.8 | 8.0 | 0.15 | 0.150 | 1.400 |
|
| ASMD1812-050/33 | 0.50 | 1.00 | 33.0 | 100 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 |
|
| ASMD1812-050 | 0.50 | 1.00 | 15.0 | 100 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 |
|
| ASMD1812-030-60V | 0.30 | 0.60 | 60.0 | 100 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 |
|
| ASMD1812-030-33V | 0.35 | 0.60 | 30.0 | 100 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 |
|
| ASMD1812-030 | 0.30 | 0.60 | 30.0 | 100 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 |
|
| ASMD1812-020-60V | 0.20 | 0.40 | 60.0 | 100 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 |
|
| ASMD1812-020-33V | 0.20 | 0.40 | 33.0 | 100 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 |
|
| ASMD1812-020 | 0.20 | 0.40 | 30.0 | 100 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 |
|
| ASMD1812-014-33V | 0.14 | 0.34 | 33.0 | 100 | 0.8 | 1.5 | 0.15 | 0.650 | 6.000 |
|
| ASMD1812-014 | 0.14 | 0.34 | 60.00 | 100 | 0.8 | 1.5 | 0.15 | 0.650 | 6.000 |
|
| ASMD1812-010-60V | 0.10 | 0.30 | 60.0 | 100 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 |
|
| ASMD1812-010-33V | 0.10 | 0.30 | 33.0 | 100 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 |
|
| ASMD1812-010 | 0.10 | 0.30 | 30.0 | 100 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 |
|
