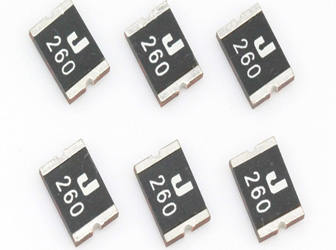

ASMD2920-260
集電通ASMD2920-260貼片型、無鉛、卷盤式包裝自恢復保險絲，應用于高密度線路板，工作電流：0.3-3A 工作電壓：6-60V，工作溫度：-40℃-85℃。
| 型號 | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ASMD2920-100-60V | 1.00 | 2.00 | 60 | 100 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 |
 |
| ASMD2920-100 | 1.00 | 2.00 | 33 | 100 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 |
|
| ASMD2920-700-6V | 7.00 | 14.00 | 6 | 40 | 1.5 | 25.0 | 6.0 | 0.0025 | 0.010 |
|
| ASMD2920-700 | 7.00 | 14.00 | 12 | 40 | 1.5 | 25.0 | 6.0 | 0.0025 | 0.010 |
|
| ASMD2920-600-6V | 6.00 | 12.00 | 6 | 40 | 1.5 | 25.0 | 6.0 | 0.004 | 0.020 |
|
| ASMD2920-600 | 6.00 | 12.00 | 12 | 40 | 1.5 | 25.0 | 6.0 | 0.004 | 0.020 |
|
| ASMD2920-500-16V | 5.00 | 10.00 | 16 | 40 | 1.5 | 25.0 | 5.0 | 0.005 | 0.031 |
|
| ASMD2920-500-12V | 5.00 | 10.00 | 12 | 40 | 1.5 | 25.0 | 5.0 | 0.005 | 0.031 |
|
| ASMD2920-500 | 5.00 | 10.00 | 6 | 40 | 1.5 | 25.0 | 5.0 | 0.005 | 0.031 |
|
| ASMD2920-400-24V | 4.00 | 8.00 | 6 | 40 | 1.5 | 20.0 | 4.0 | 0.008 | 0.040 |
|
| ASMD2920-400-6V | 4.00 | 8.00 | 6 | 40 | 1.5 | 20.0 | 4.0 | 0.008 | 0.040 |
|
| ASMD2920-300-16V | 3.00 | 6.00 | 16 | 100 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 |
|
| ASMD2920-200-24V | 2.00 | 4.00 | 24 | 100 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 |
|
| ASMD2920-200-33V | 2.00 | 4.00 | 33 | 100 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 |
|
| ASMD2920-250-24V | 2.50 | 5.00 | 24 | 100 | 1.5 | 8.0 | 16.0 | 0.020 | 0.085 |
|
| ASMD2920-260-16V | 2.60 | 5.20 | 16 | 100 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 |
|
| ASMD2920-400 | 4.00 | 8.00 | 16 | 40 | 1.5 | 20.0 | 4.0 | 0.008 | 0.040 |
|
| ASMD2920-300 | 3.00 | 6.00 | 6 | 40 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 |
|
| ASMD2920-260 | 2.60 | 5.20 | 6 | 100 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 |
|
| ASMD2920-250 | 2.50 | 5.00 | 16 | 100 | 1.5 | 8.0 | 16.0 | 0.020 | 0.085 |
|
| ASMD2920-200 | 2.00 | 4.00 | 24 | 100 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 |
|
| ASMD2920-185 | 1.85 | 3.70 | 33 | 100 | 1.5 | 8.0 | 2.5 | 0.030 | 0.150 |
|
| ASMD2920-150 | 1.50 | 3.00 | 33 | 100 | 1.5 | 8.0 | 2.0 | 0.035 | 0.230 |
|
| ASMD2920-125 | 1.25 | 2.50 | 33 | 100 | 1.5 | 8.0 | 2.0 | 0.050 | 0.250 |
|
| ASMD2920-075-60V | 0.75 | 1.50 | 60 | 100 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 |
|
| ASMD2920-075 | 0.75 | 1.50 | 33 | 100 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 |
|
| ASMD2920-050 | 0.50 | 1.00 | 60 | 100 | 1.5 | 2.5 | 4.0 | 0.180 | 1.400 |
|
| ASMD2920-030 | 0.30 | 0.60 | 60 | 100 | 1.5 | 1.5 | 3.0 | 0.600 | 4.800 |
|
